CVS Series 4057

Quick Specs

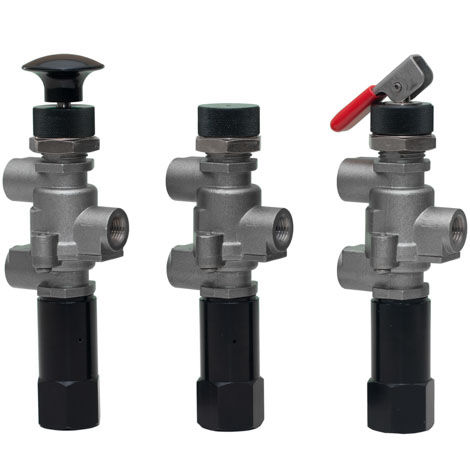

Types

CG - Pressure Operated spring return
CE - Manual Or Pressure Operated spring return
CP - Manual Latch or Pressure operated with spring return

Temperature Range- 40°C ~ 120°C (- 40°F ~ 250°F)
Maximum Pressure at Ports 1, 2, or 3125 psi

The CVS 4057 3-Way Valves utilize a modular design and incorporate a sliding spool in order to control flow. The CVS 4057 standard sliding spool features a small center dead band position which allows no simultaneous valve port flow.
